Processing Heads

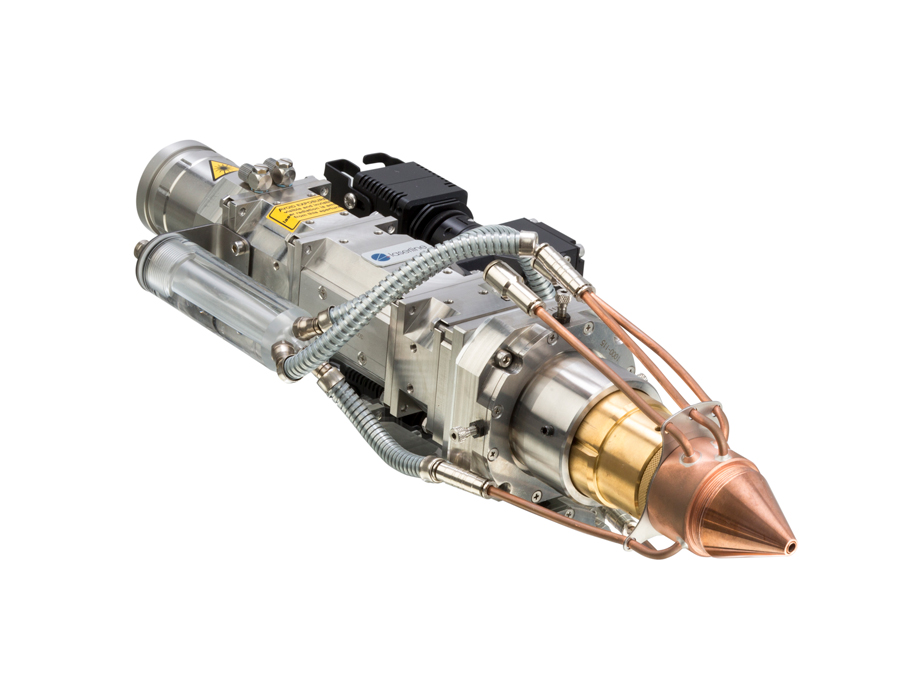

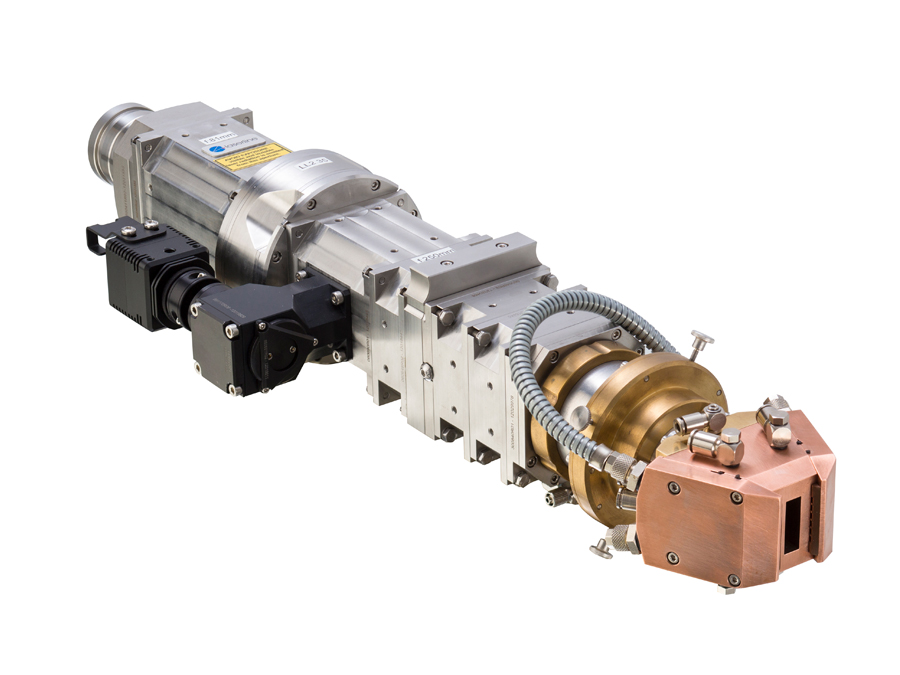

The basic design of our processing optics consists of a standardized optical fiber connector LLK-B/-D , a collimating and a focusing lens.

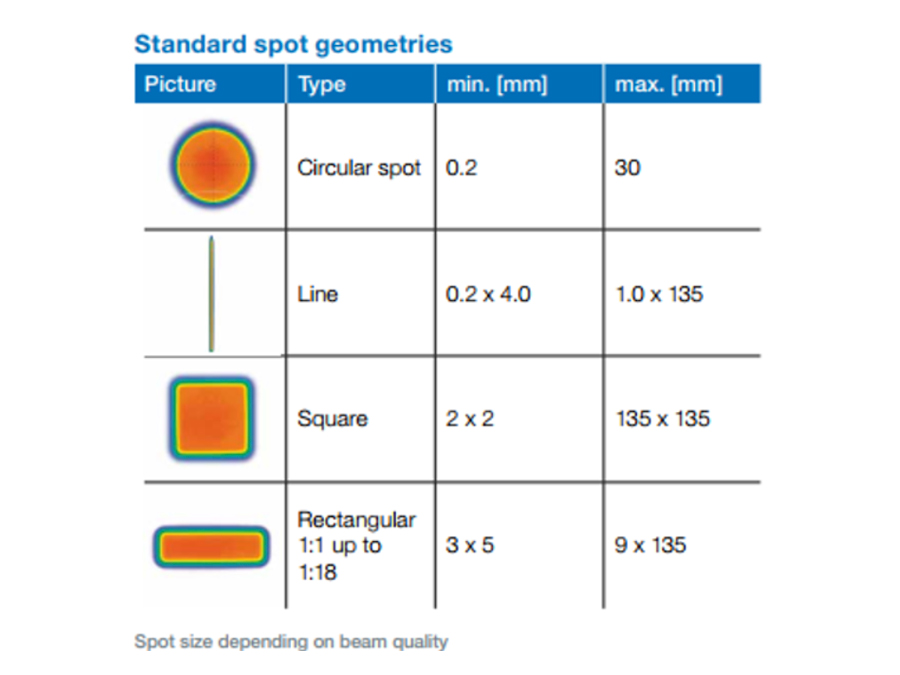

Thanks to a wide range of lens systems and equipment options, the laser beam can be shaped into a focus with almost perfect homogeneity in energy distribution and optimally adapted to the particular application. Our optics are suitable for up to 20Kw laser power.

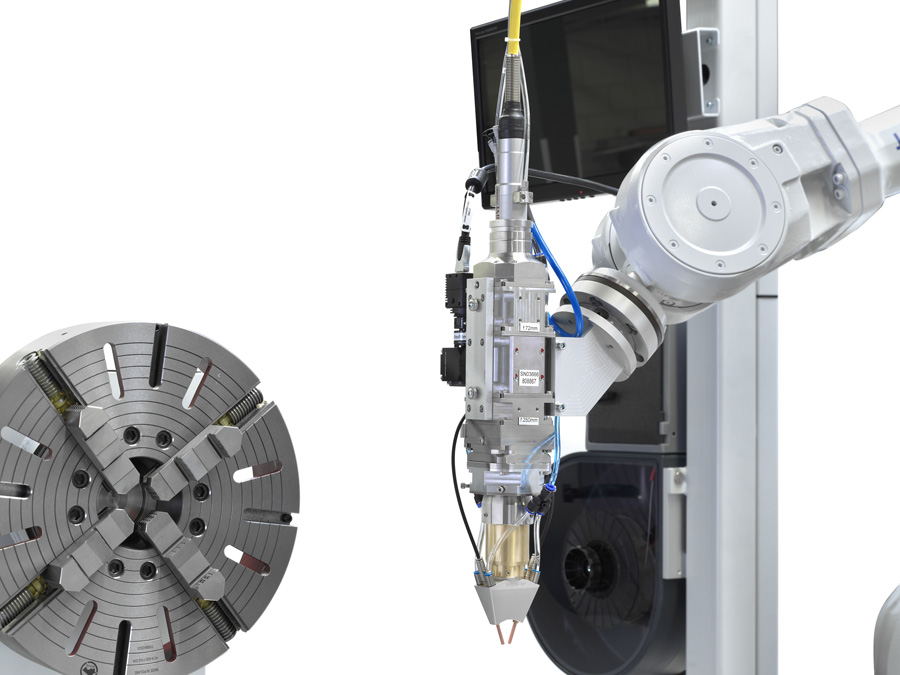

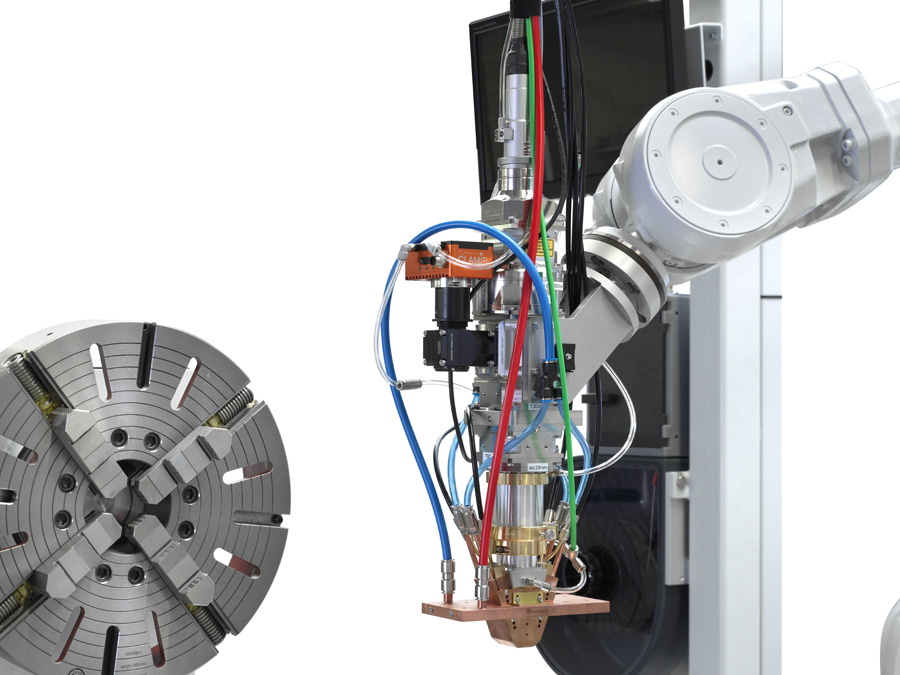

These optics are supplemented by additional powder nozzles or wire feed units.

Numerous extensions are available to meet the requirements for a safe and optimised production process.

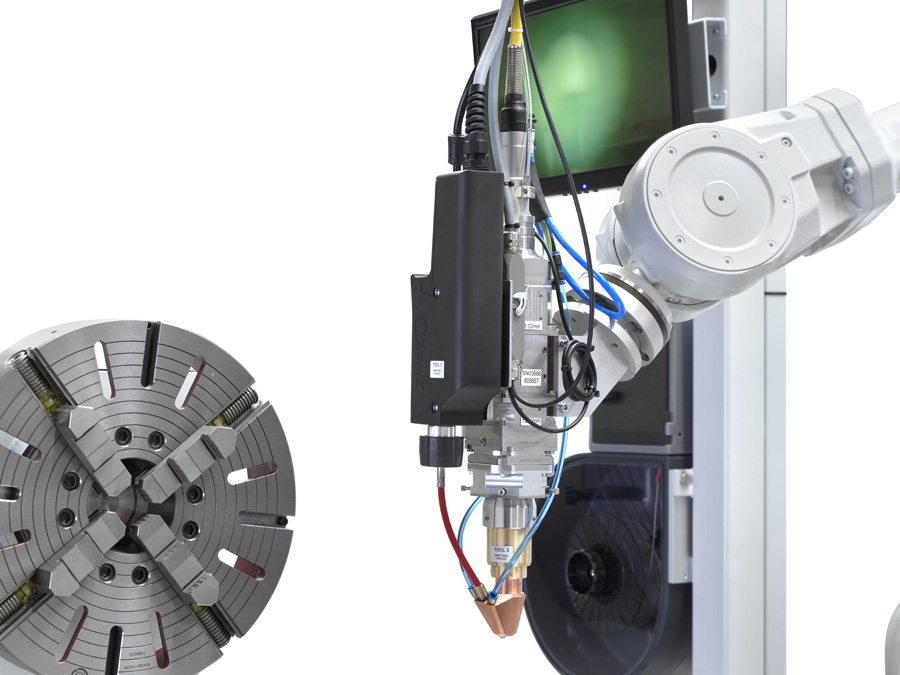

The integration of coupling units allows the use of pyrometers to measure temperature radiation or CMOS cameras for process monitoring.
